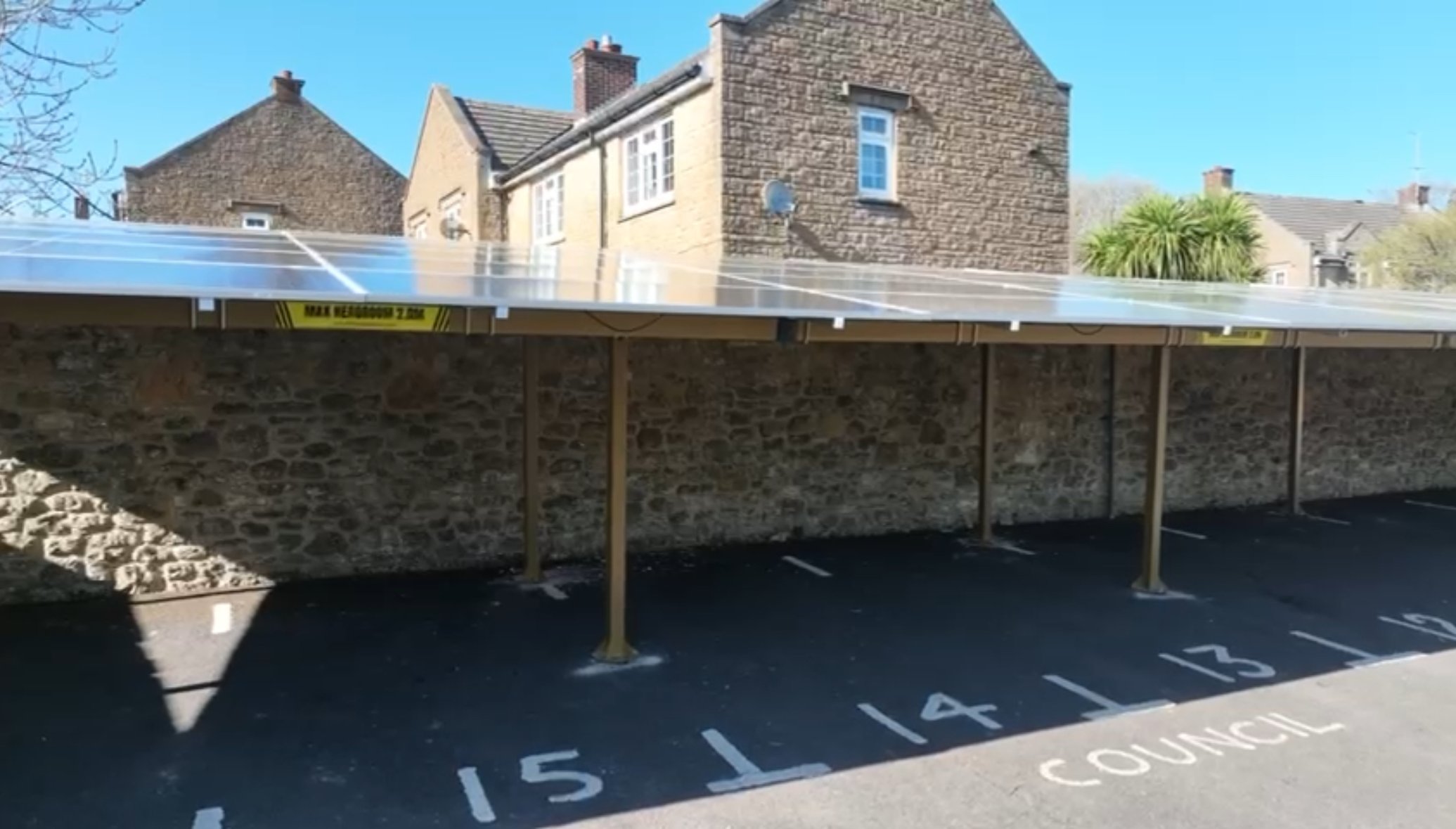

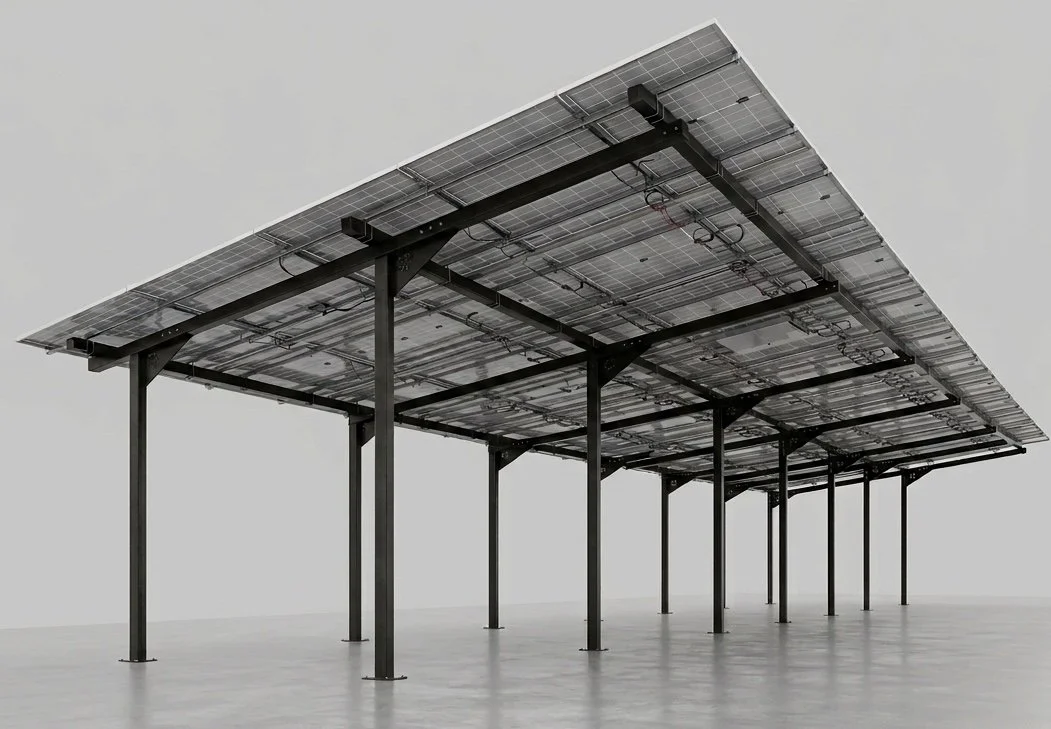

The Industry’s Smartest Car Port

100mm powder coated, mild steel box section

2.5mm heavy duty, galvanised steel, adjustable PV mounting sub-frame (partially pre-assembled)

Galvanised steel nuts, bolts and bracketry.

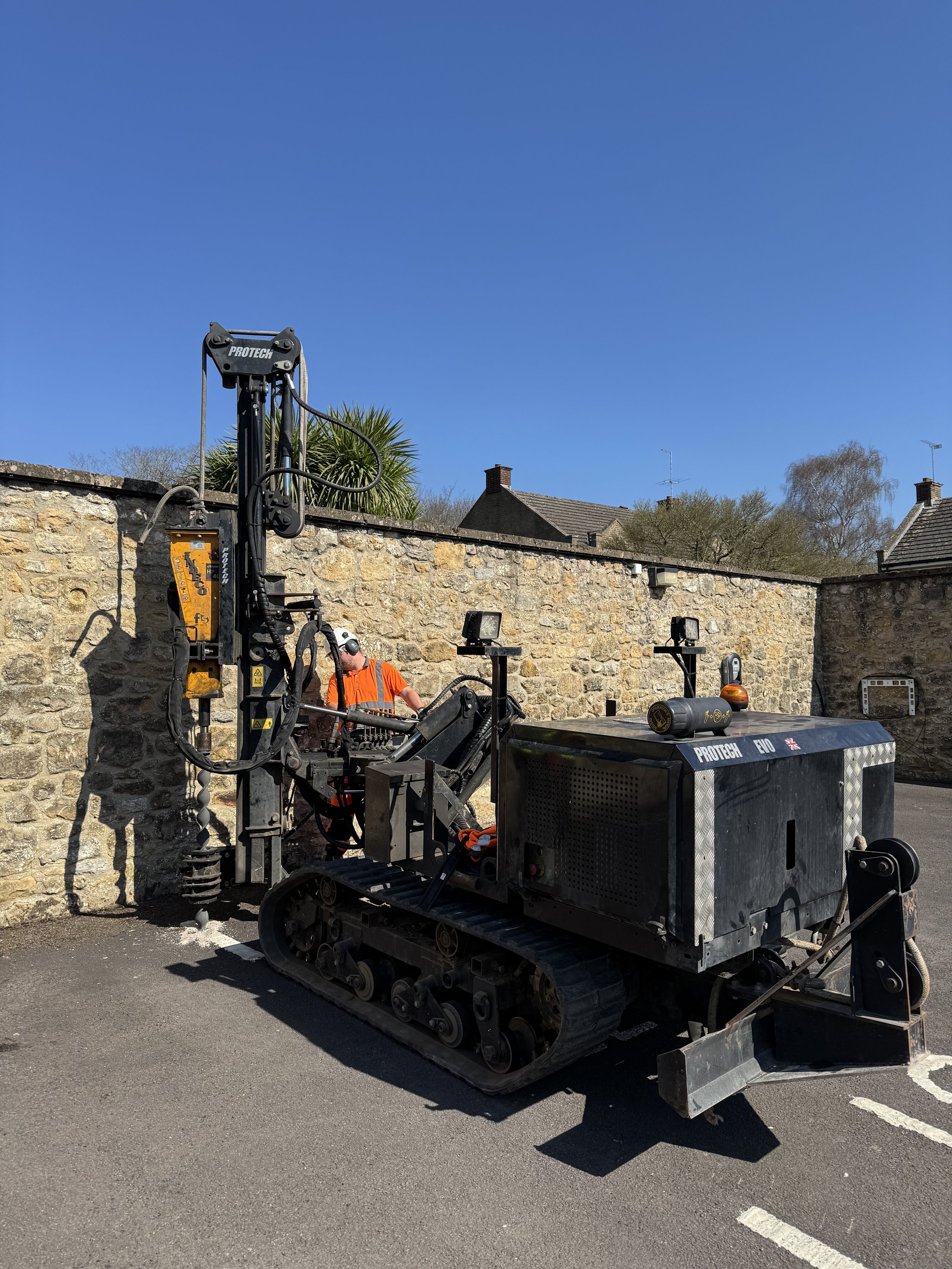

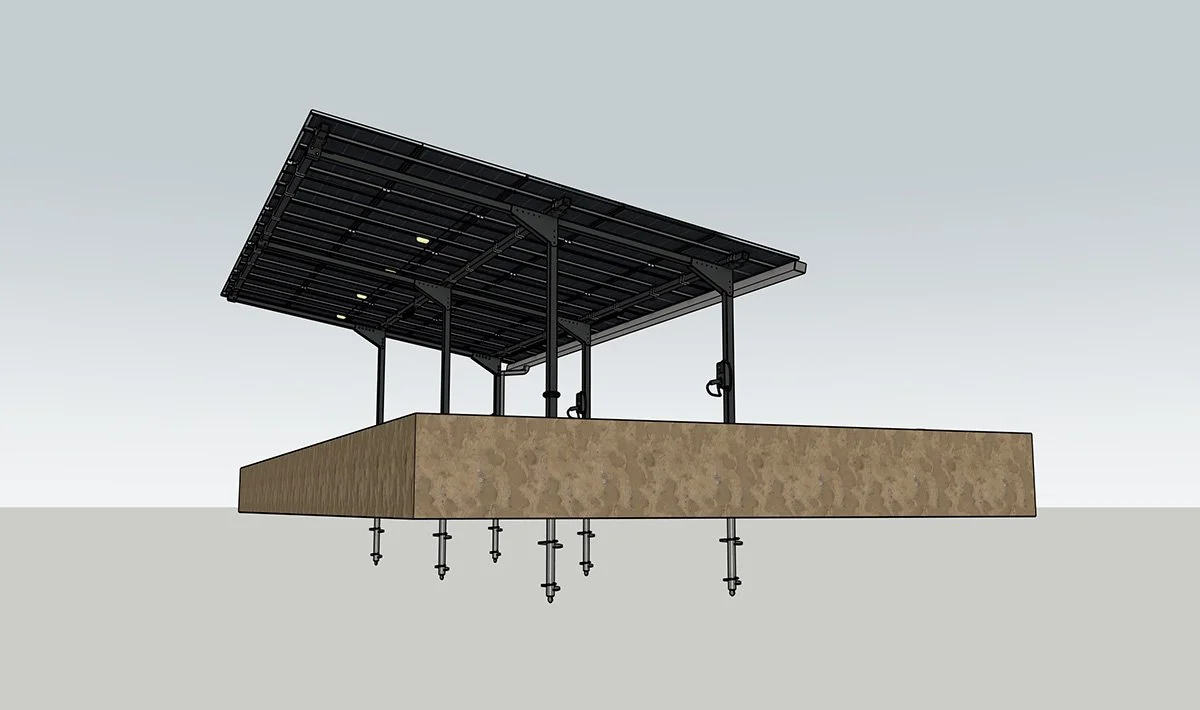

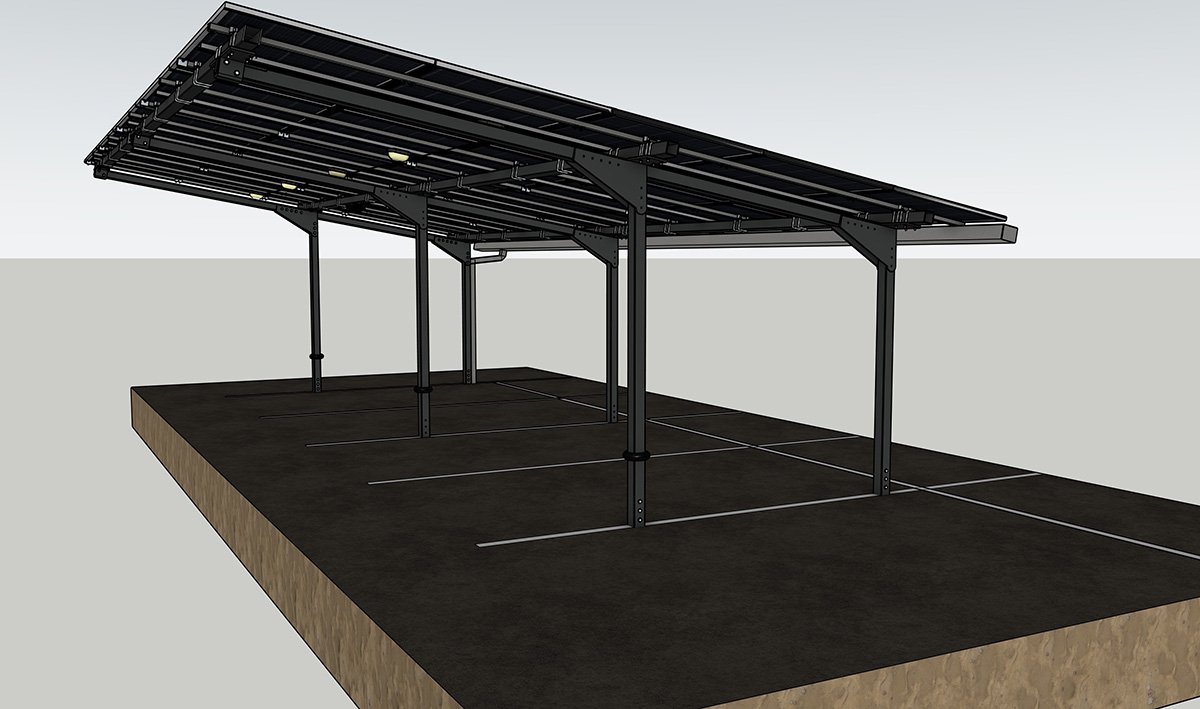

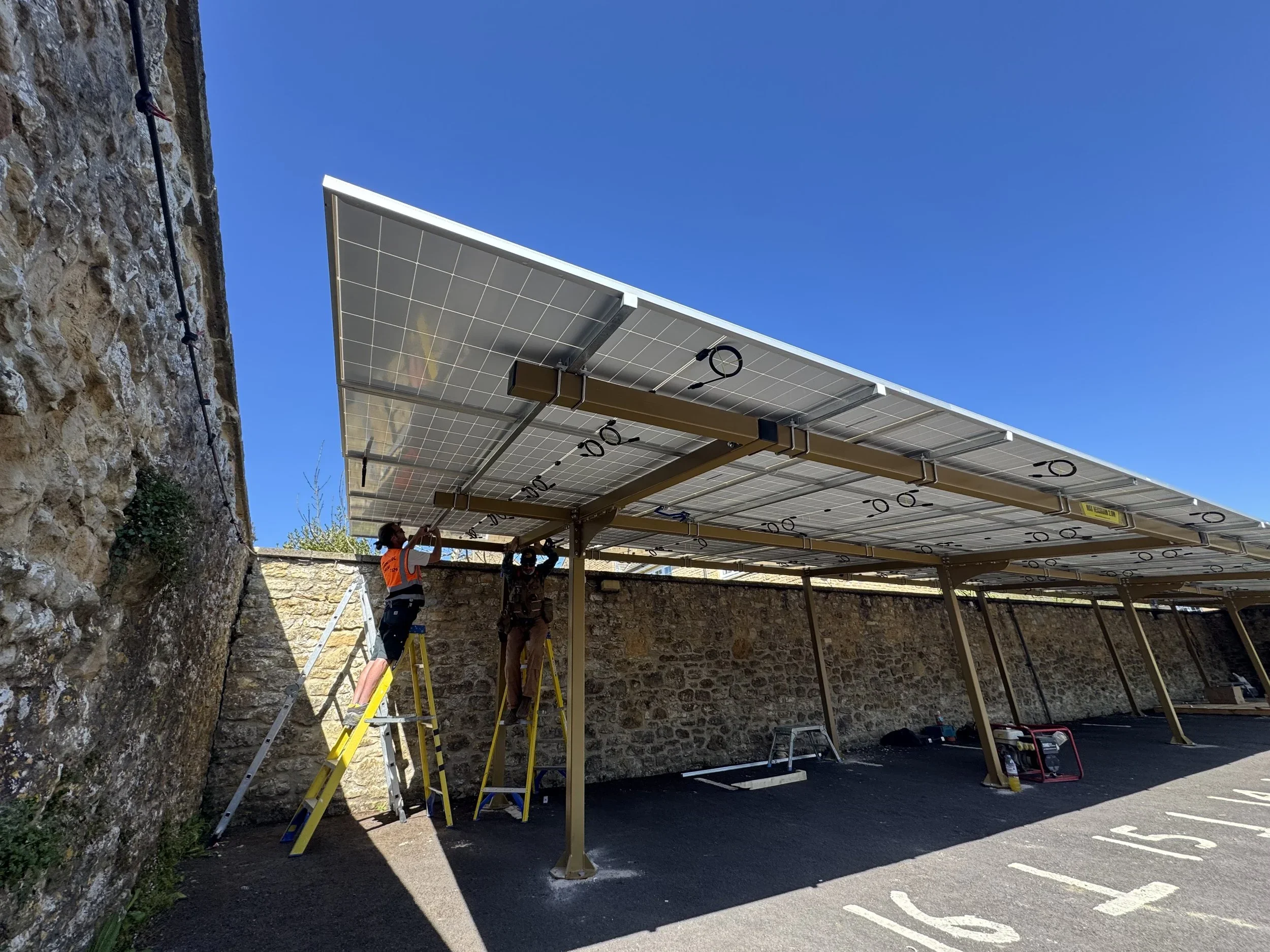

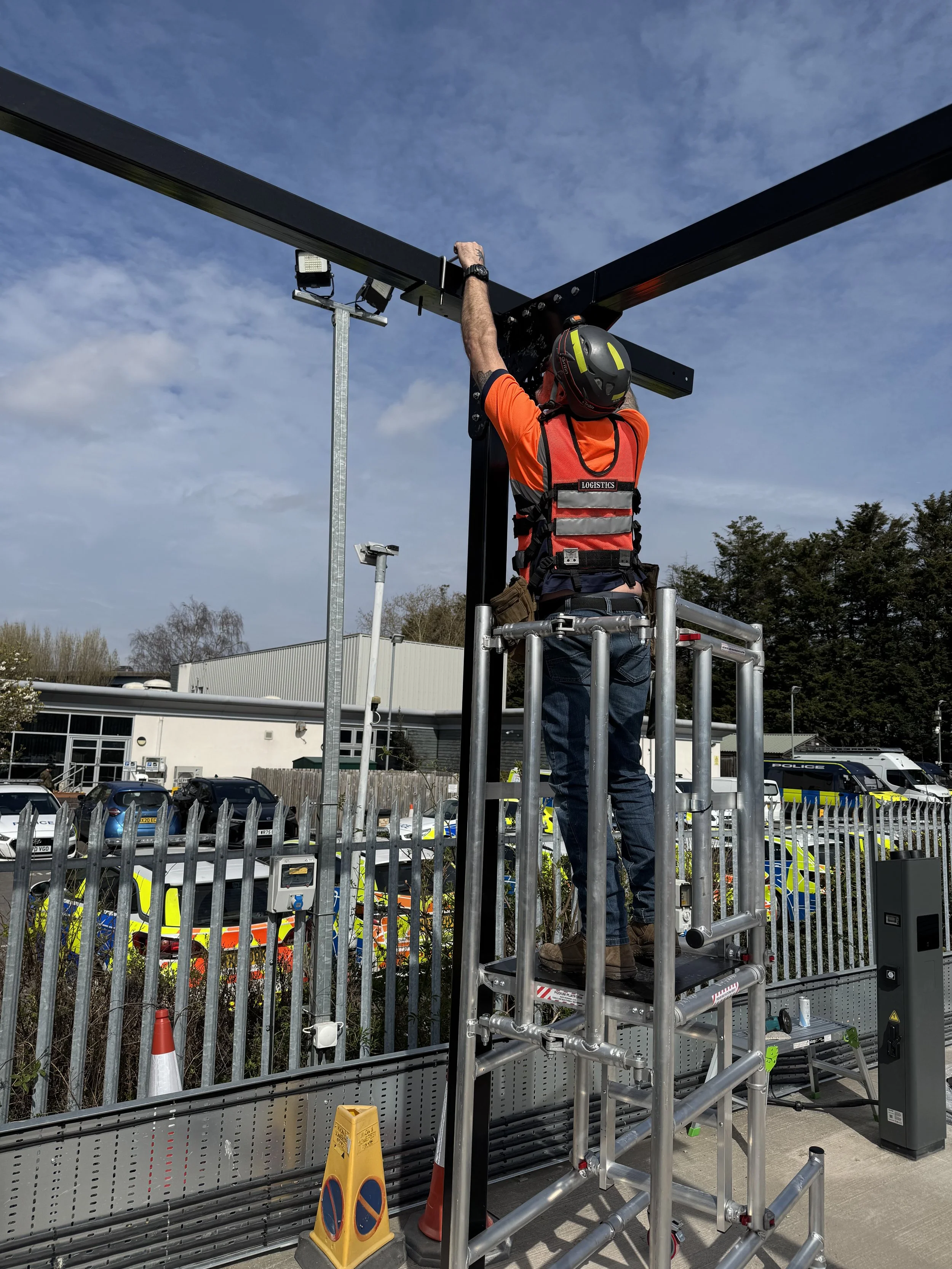

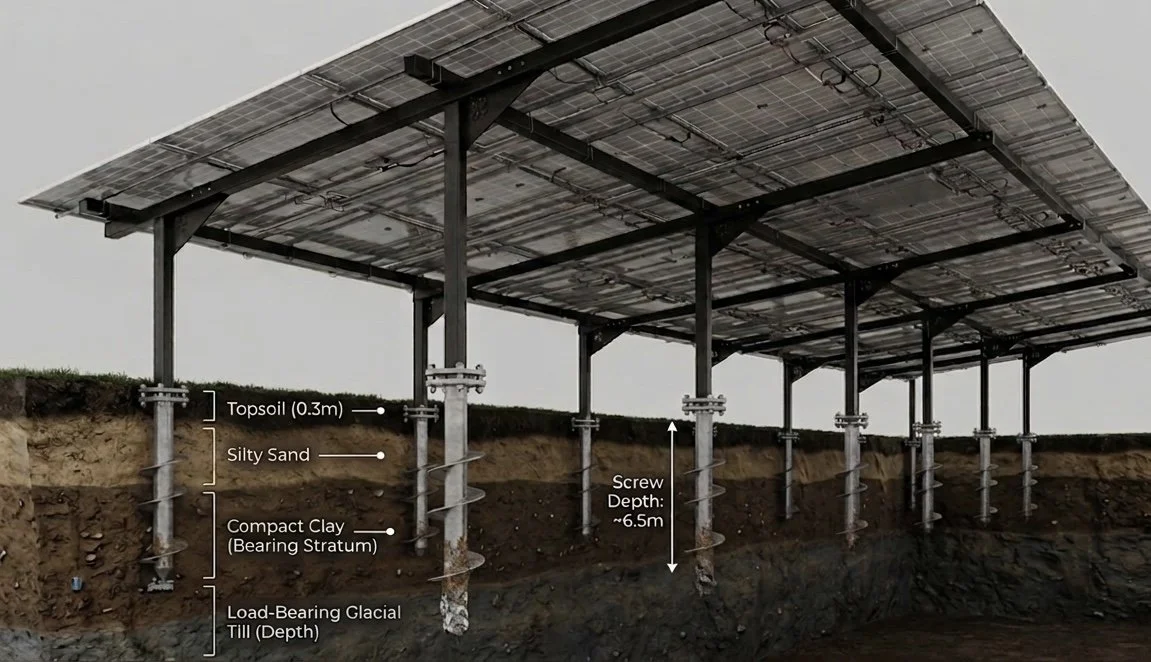

Each leg requires a pull rating of at least 1 Metric Tonne which can be achieved either through directly bolting the structure to the ground surface or by piling a ground screw product. We strongly recommend installation via our fully trained team which includes a ground survey, pull test data and a 10 year installation warranty.

Self installation will include a structure warranty only.

Manufacture lead time 4-6 weeks (depending on bay dimensions and location)

Please provide parking bay dimensions and any site drawings on order, we will work with you to ensure the product is to the correct specification for your site and advise on the best installation method.

The Product is powder coated to standard RAL colours, please state preference on order.

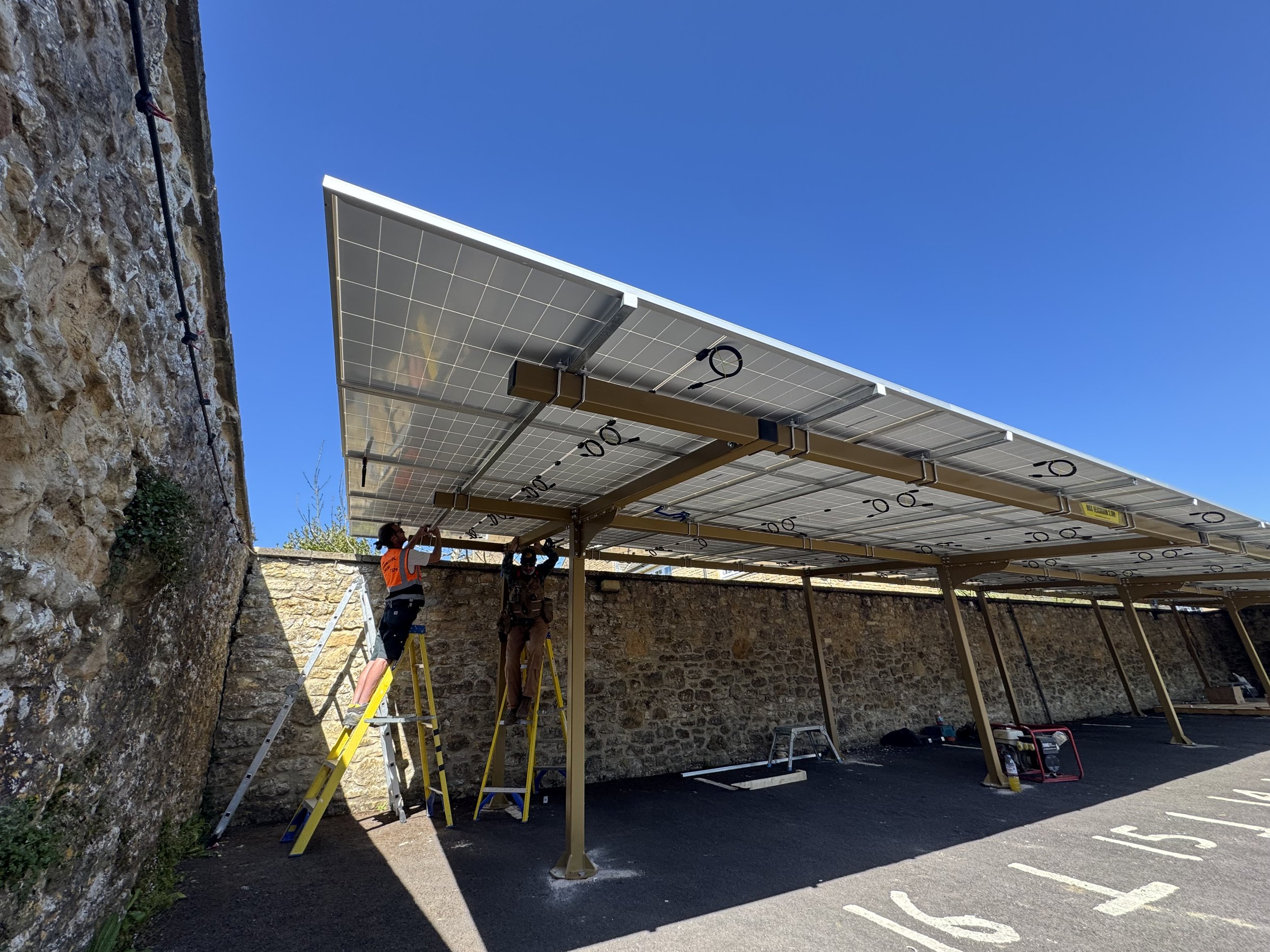

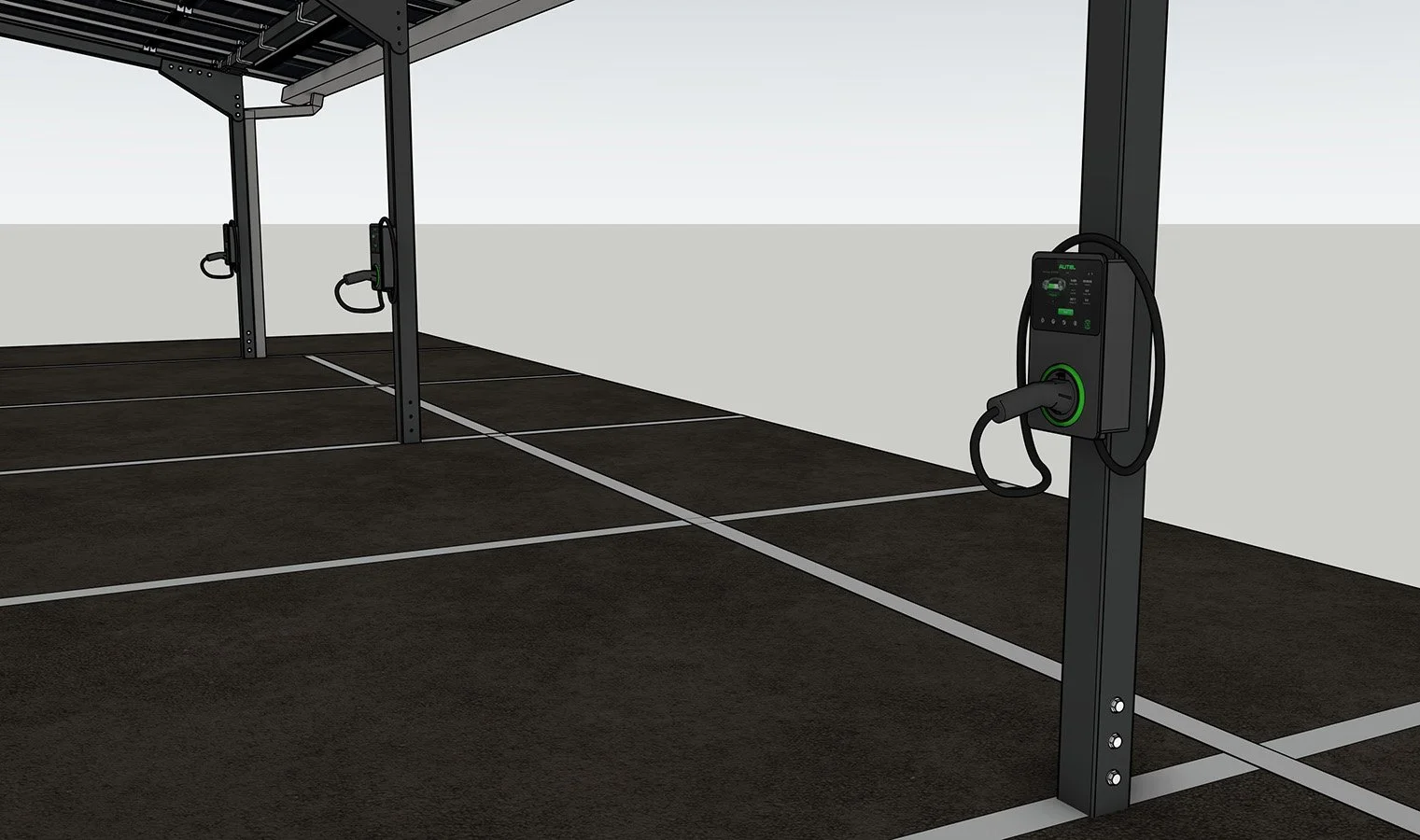

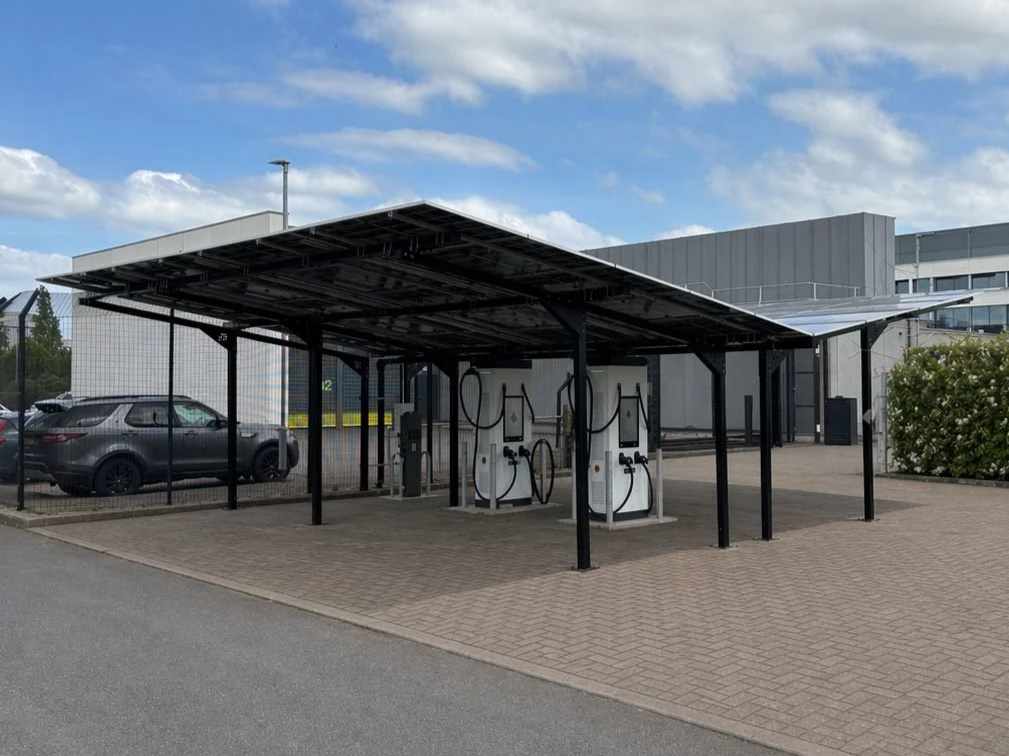

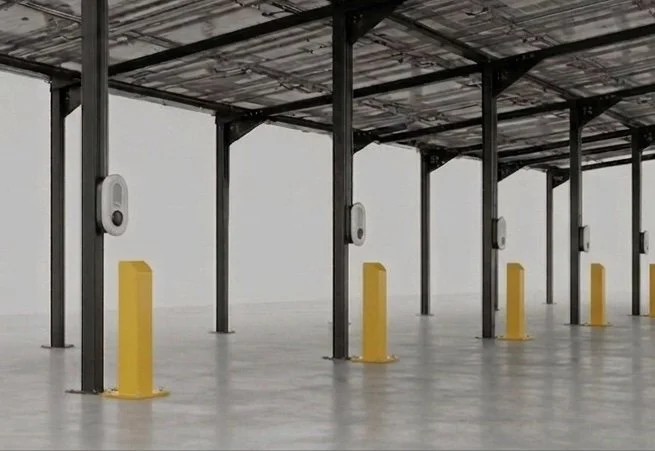

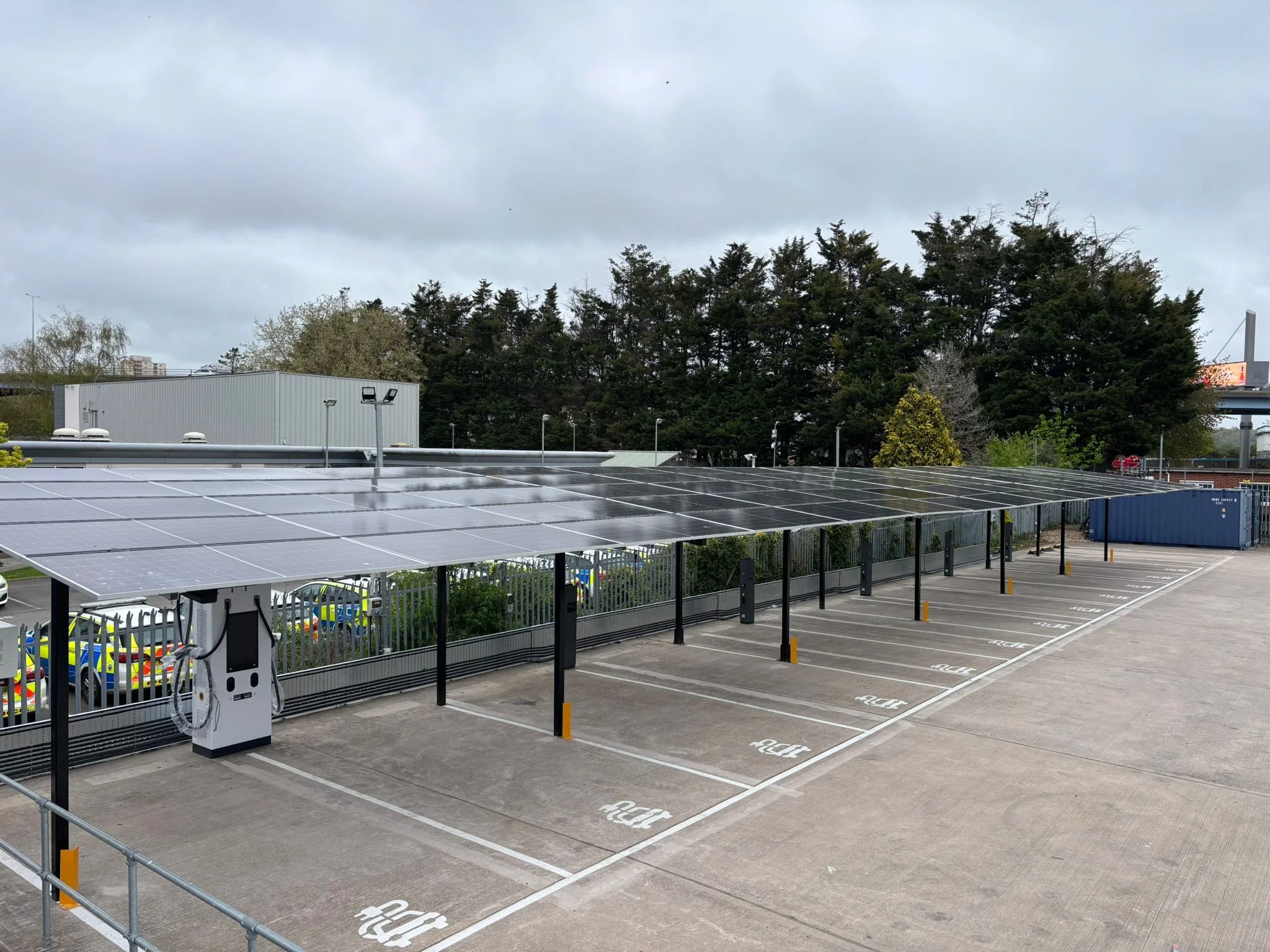

Our in-house team can provide installation services at an additional cost as well as modifications such as integrated EV chargers, Cladding and Lighting.

Please state whether your car port need to face towards or away from the front of the bay.

Standard Bay width: (upright leg centre to upright leg centre) 2400

Standard top frame dimensions: 4529 × 4800 (double bay)

Solar Mounting kit adjustable to fit most PV sizes please state preferred panel on order.
